CO2, Temperature, Humidity & Light Sensor Manual

Product Contents

a18fa4d78cd4edfaf55c819e4a359915

CO2, Temperature, Humidity & Light Sensor

1 PC

Safety Information

Please read these instructions carefully before using the device. Failure to follow these safety guidelines may result in serious injury, void the warranty, and release Vivosun from all liability.

Carefully read and follow the instructions for the device and its connection to the controller. Failure to do so may result in damage and void the warranty.
Do not use this device in hazardous environments, including areas with flammable or explosive materials, corrosive chemicals, or excessive moisture. These devices are designed for indoor use in grow tents only.
If the power cord is damaged, stop use immediately and contact Vivosun. Do not disassemble or modify the device without Vivosun’s authorization, as doing so may cause damage and void the warranty.

Save these instructions for future reference.

Specifications

Detection Range

Temperature: 14°F–140°F (-10°C–60°C)
Humidity: 0–95%
CO2: 0–40000 ppm
Light: 0–100%

Accuracy

Temperature: ± 0.8°C
Humidity: ± 0.6%PH
CO2: 50 ppm ± 5%
Light: ± 0.1%

Response Time

Temperature & Humidity: 200ms
CO2: 60s
Light: 120ms

Operating Temperature

14°F–140°F (-10–60°C)

Operating Humidity

0–90%RH

Compatible Controller

GrowHub E42A+

Grow Reference Chart

Condition	Germination	Seedling	Vegetative
Light Cycle (On/Off)	N/A	18/6	18/6
Humidity	65–85%	55–85%	40–70%
Temperature	70–85°F 21–29°C	70–85°F 21–29°C	70–85°F 21–29°C
VPD (kPa)	0.4-0.8	0.5-1.0	0.8-1.5
CO2 (ppm)	400	600	800

Condition

Germination

Seedling

Vegetative

Light Cycle (On/Off)

N/A

18/6

Humidity

65–85%

55–85%

40–70%

Temperature

70–85°F
21–29°C

VPD (kPa)

0.4-0.8

0.5-1.0

0.8-1.5

CO2 (ppm)

400

600

800

Condition	Flowering	Harvesting	Drying & Curing
Light Cycle (On/Off)	12/12 (Photo), 18/6 (Auto)	N/A	N/A
Humidity	40–50%	45–55%	45–60%
Temperature	65–80°F 18–26°C	65–75°F 18–23°C	60–70°F 15–21°C
VPD (kPa)	1.0–1.6	0.8–1.5	0.5–1.2
CO2 (ppm)	1000	N/A	N/A

Condition

Flowering

Harvesting

Drying & Curing

Light Cycle (On/Off)

12/12 (Photo),
18/6 (Auto)

N/A

Humidity

40–50%

45–55%

45–60%

Temperature

65–80°F
18–26°C

65–75°F
18–23°C

60–70°F
15–21°C

VPD (kPa)

1.0–1.6

0.8–1.5

0.5–1.2

CO2 (ppm)

1000

N/A

Connection

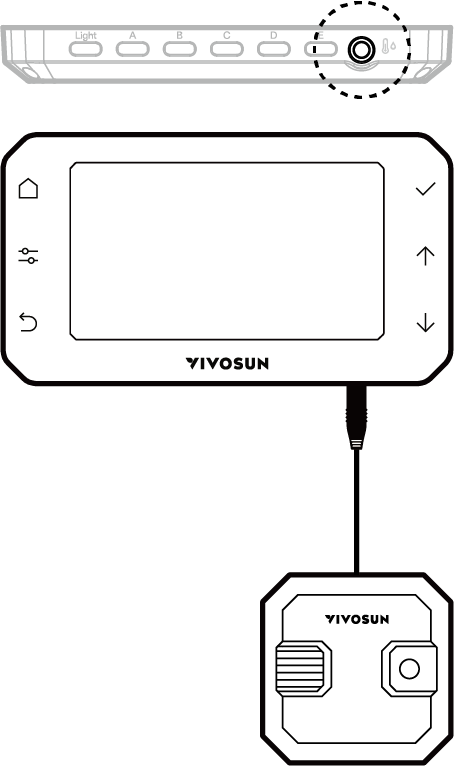

Replace the original temperature and humidity sensor connected via the 2.5 mm AUX interface with the CO2, temperature, humidity & light sensor.

Installation

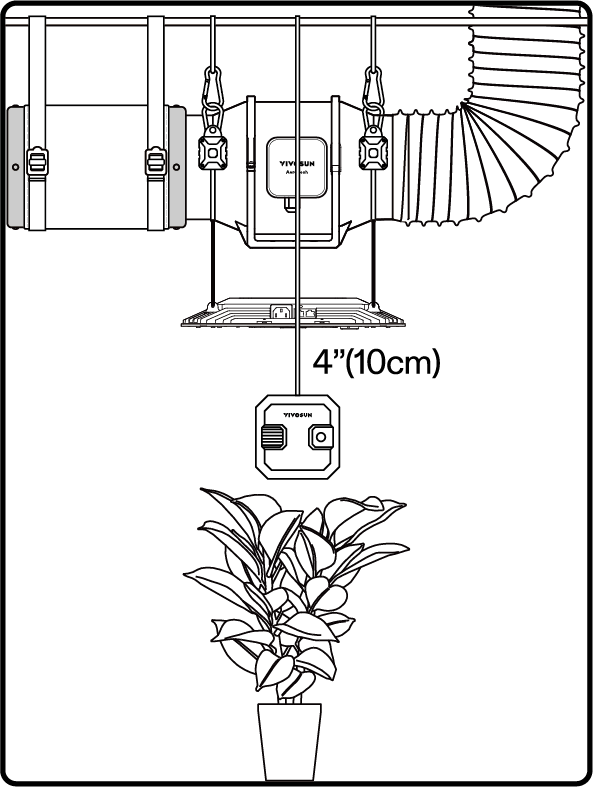

Suggest to hang the sensor 4”(10cm) above the canopy of plants to monitor the canopy CO2, temperature and humidity more accurately.

Calibration

To maintain CO2 sensor accuracy, we recommend placing the sensor outdoors in a well-ventilated area with ambient CO2 levels of approximately 400 ppm once per month. Allow the sensor to stabilize for 3 minutes, then perform CO2 calibration using the E42A+ controller.

More Information

Visit our website to learn more about the Temperature, Humidity, CO2 & Light Sensor.

If you have any issues or questions, you can also contact us at https://vivosun.com/help/contact-us.

Warranty

VIVOSUN offers a 2-year limited warranty on this product purchased directly from us or our authorized dealers, beginning on the original date of purchase.

This warranty is provided in addition to, and does not affect, your statutory rights under applicable consumer protection laws in the country where the product was purchased.

For the full Warranty Policy, please visit: https://www.vivosun.com/help/warranty-policy.

Alternatively, you may contact customer service at support@vivosun.com / +1 888-505-8486.
