GrowHub E42A+ Manual

Model Name

GrowHub E42A+

Safety Information

Please read these instructions carefully before using the device. Failure to follow the safety guidelines may cause serious injury, void your warranty, and release Vivosun from all liability.

Ensure your AC power source meets the electrical requirements of this device.
Check and comply with local laws and safety regulations for installation and operation.
Follow the instructions for each smart device and connect only compatible devices to the controller using the appropriate cables.
DO NOT connect incompatible devices.
DO NOT use this controller or any connected grow devices outdoors or in hazardous environments, including areas with flammable/explosive materials, corrosive chemicals, or excessive moisture. These devices are designed for indoor use in grow tents only.
DO NOT cover power cables with rugs or fabrics.
Turning off devices via the controller does not fully disconnect power. Always unplug and power down all devices before installation, maintenance, or relocation.
Carefully read and follow the instructions for each device and its connection to the controller. Failure to do so may result in damage and void the warranty.
If any device or power cord is damaged, stop use immediately and contact Vivosun. Do not disassemble or modify devices without Vivosun’s authorization—doing so may cause damage and void your warranty.

Key Features

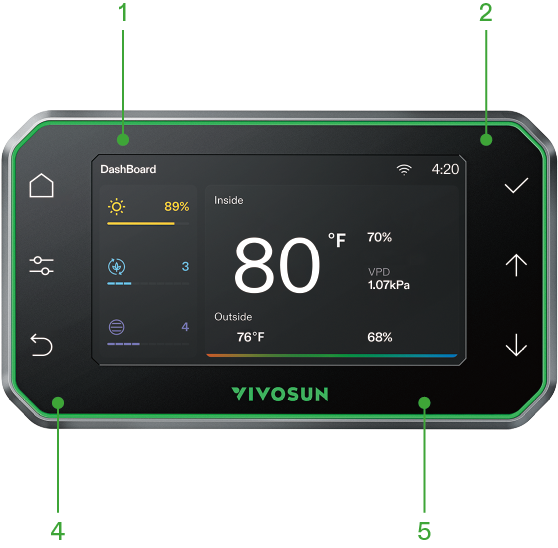

10d84b551b50151be18cdd204df64a7a

f781c2b3ae674903d567a5d1164330d1

COMPLETE HUB ： Monitor and control SGS devices such as grow lights, circulation fans and duct fans, no need for multiple controllers.
SIMPLE TO USE : Interactive color display with 6 touch buttons, designed for growers of all levels.
WI-FI & APP CONTROL : Wi-Fi enabled for remote monitoring and control via the Vivosun App
EASY INSTALLATION : Innovative magnetic mount for quick, flexible installation anywhere.
DUAL SENSORS : Dual temperature and humidity (RH) sensors track conditions inside and outside your grow space while displaying VPD.
SMART & PROFESSIONAL : Smart auto mode and professional grow recipe settings support plants from seed to harvest with minimal user input required.

Product Contents

Image	Name	Quantity
	Smart Controller	1PC
	Temperature/ Humidity Sensor (3m)	1PC
	Iron Plate	1PC
	Converter (Type C to RJ11 & RJ45)	1 PC
	Wire Tie	1 PC
	Expansion Screws	2 PCS
	Cable Tie	3 PCS
	12V Adapter*	1 PC


Name

Quantity

aaa4c132309ae0d94c5269a89f307bdf

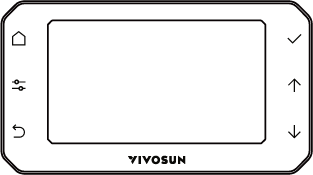

Smart Controller

1PC

74303786f6655032d2404fcc6c237ca1

Temperature/ Humidity Sensor (3m)

1PC

6e21d33e1a4ddc6eca8ad0bc5259e36c

Iron Plate

1PC

e7abc5e9118ad1e3f1537afa617d1d5a

Converter (Type C to RJ11 & RJ45)

1 PC

cbcb978da9f1c96d20f37ddc2a961a29

Wire Tie

1 PC

7b7170c3bcae936a27ee8cb2d9362b6b

Expansion Screws

2 PCS

61eb2bbc75a0ccac2b0fd1279a1fc681

Cable Tie

3 PCS

6629f041820e79873a5720c77127ffc8

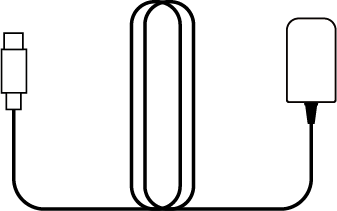

12V Adapter*

1 PC

*Power adapter not included in all kit packages

Specifications

Display Size:

4.3" Color Screen

Rated Power:

3 W

Wi-Fi Connection:

2.4 GHz

Operating Voltage:

12 V

Operating Humidity:

35%–85% RH

Operating Temperatures:

32–140°F (0–60°C)

Dimension:

5.55*3.18*0.79 in (14.1*8.1*2 cm)

Sensor Probe Length:

9.84 ft (3 m)

Installation & Connection

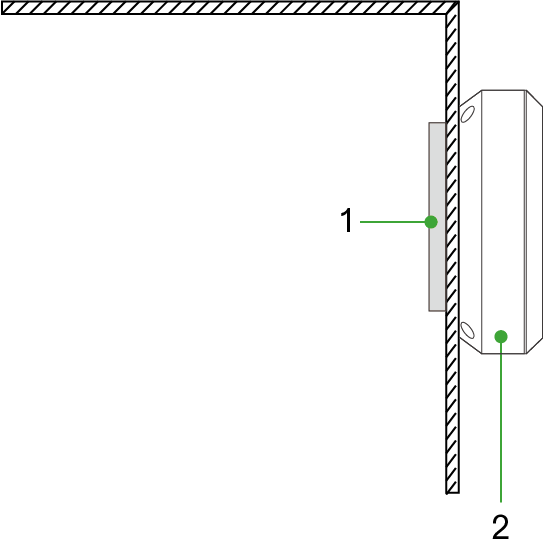

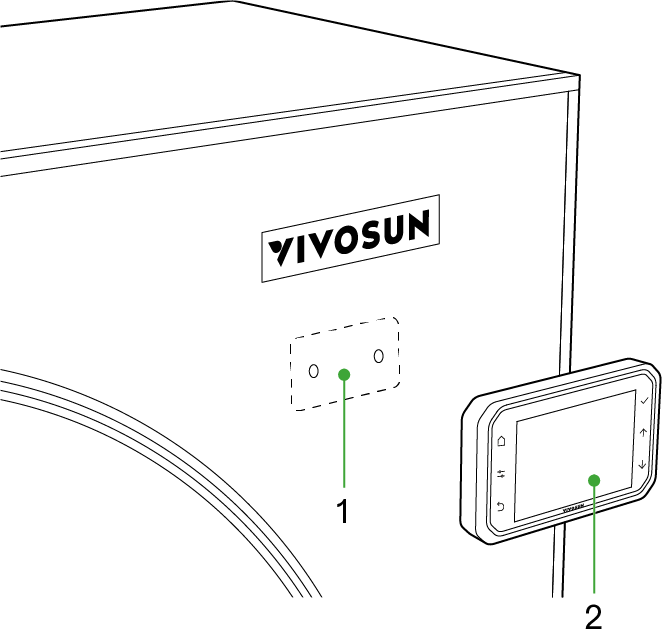

TENT MOUNTING

Remove the tape cover from the Iron Plate and stick it to the INSIDE of your tent where you want the controller positioned. Then place the GrowHub Controller on the OUTSIDE of the tent—it will attach securely to the Iron Plate using the built-in magnet on its back.

f741a70fd7d18b0fe19645a40bdc1e34

33acaaae1f0b104b08e2813a7882540c

*1.Iron Plate
*2.GrowHub Controller

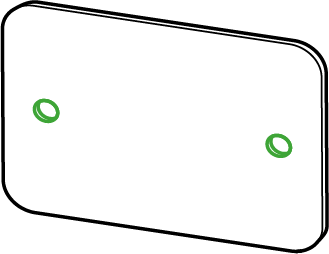

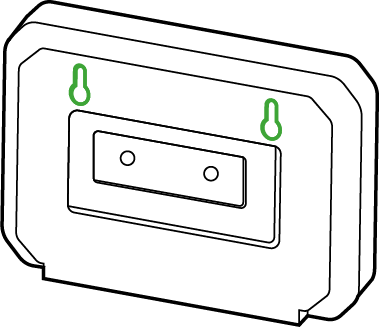

WALL MOUNTING

e71174c8334b7741eff093b92fed2345

748950f03b8210739382b8ff8b7f29b9

Mounting Holes

Slotted Hanging Holes

This installation method requires drilling holes at the desired mounting location. First, measure the distance between the Mounting Holes on the Iron Plate and mark these points on the mounting surface. Drill the holes, insert the plastic expansion anchors, align the Iron Plate with the holes, and secure it in place using the provided screws. The GrowHub Controller can then be mounted directly onto the Iron Plate using its built-in magnet.

Alternatively, you can hang the GrowHub Controller directly on the screws without the Iron Plate. Measure and mark a center distance of 74mm, drill holes, and insert the expansion screws. Then, align the Slotted Hanging Holes on the back of the GrowHub Controller with the screws and slide it into place.

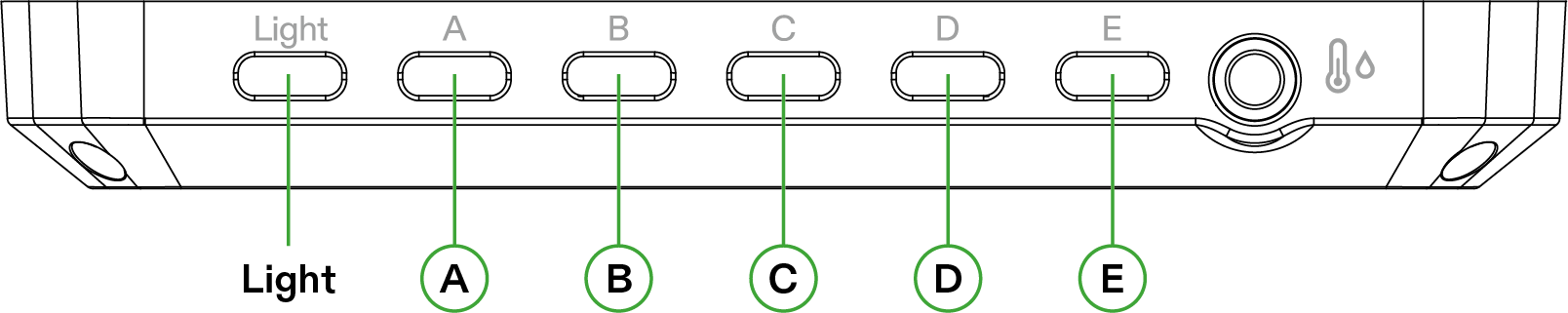

I/O

Light

Light Type C Port:

Use Type C to RJ11 & RJ45 converter to control AeroLight, LumaLight and LumaRay

A/B/C/D/E

Universal Type-C Ports:

Power Adapter, AeroWave Clip-on Fan, and AeroZesh Inline Fan

74911988a1e38f7763166e389a145351

2.5mm AUX Interface:

Temperature & Humidity Sensor

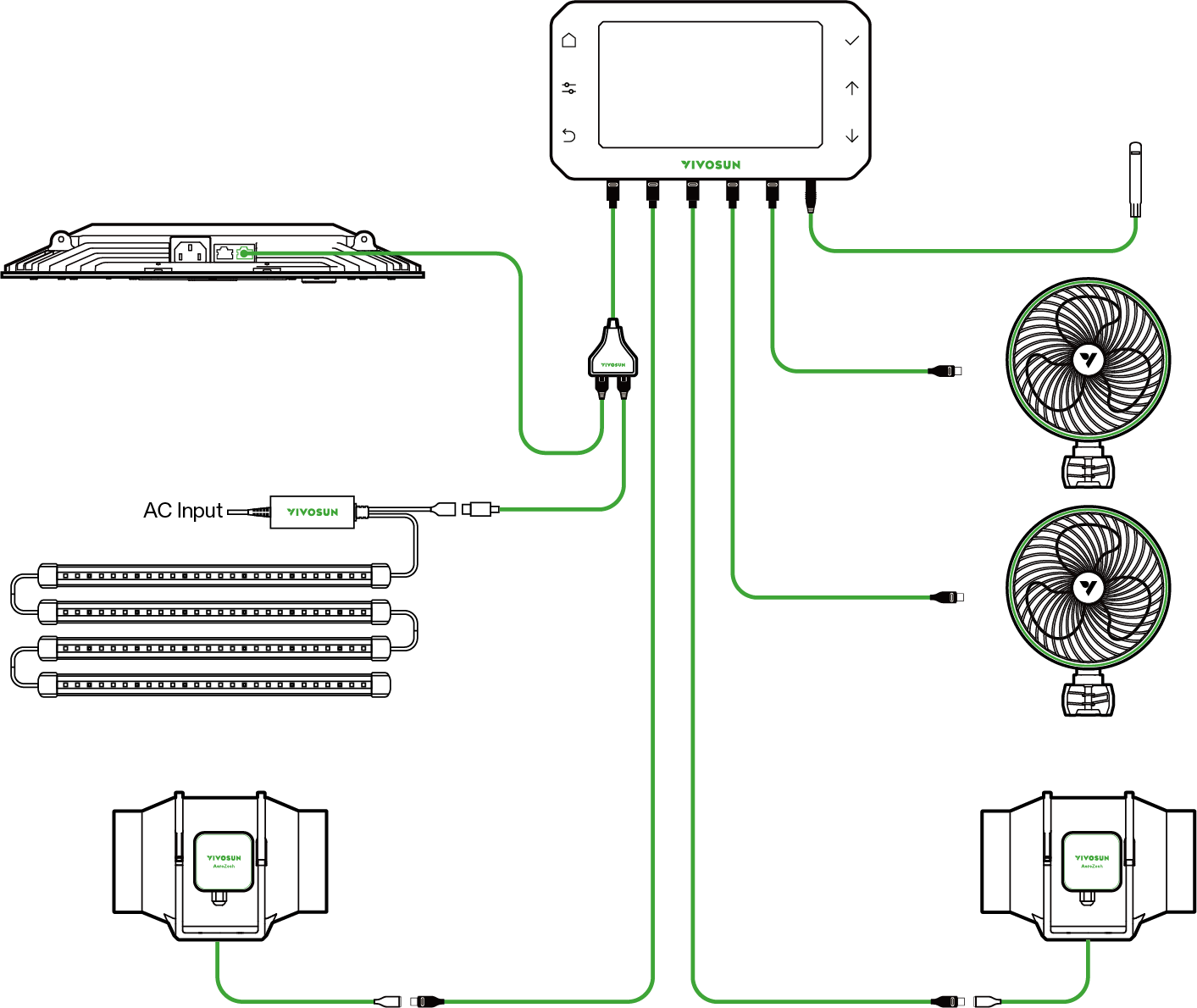

CONFIGURATION OVERVIEW

COMPATIBILITY LIST

List of Compatible Light by Brand

Brand: Models	Port on GrowHub E42/E42A/E42A+
BESTVA: Bat, TF Series	RJ11 port(E)
FLEXSTAR: PRO, SE, MATRIX, TRIFOLD, NOVA Series, LTL630W	RJ11 port(E)
GROWER’S CHOICE: ROI Series, TSL-800	RJ11 port(E)
HYPHOTONFLUX: HPF, PRO Series	RJ11 port(E)
MARS HYDRO: TS, FC, FC-E, SP Series	RJ11 port(E)
LUXX: 200, 645, 860 Series, DE100(HPS)	RJ11 port(E)
MEDIC GROW: EZ, FOLD, MINI SUN Series	RJ11 port(E)
PHLIZON: PL, FD, PRO Series	RJ11 port(E)
SPIDER FARMER: G, SE, SF Series	RJ11 port(E)
SUNRAISE: Bar Series	RJ11 port(E)
VIPARSPECTRA: KS5000(2023), XS2000(2023), PRO Series(2023)	RJ11 port(E)
VIVOSUN: Aerolight Series	RJ45 port(F)
VIVOSUN: VS(Except VS1000E), VSF, VSFD, VSFL Series, VSX3200	RJ11 port(E)
VOLT: VL Series	RJ11 port(E)

Brand: Models

Port on GrowHub E42/E42A/E42A+

BESTVA: Bat, TF Series

RJ11 port(E)

FLEXSTAR: PRO, SE, MATRIX, TRIFOLD, NOVA Series, LTL630W

RJ11 port(E)

GROWER’S CHOICE: ROI Series, TSL-800

RJ11 port(E)

HYPHOTONFLUX: HPF, PRO Series

RJ11 port(E)

MARS HYDRO: TS, FC, FC-E, SP Series

RJ11 port(E)

LUXX: 200, 645, 860 Series, DE100(HPS)

RJ11 port(E)

MEDIC GROW: EZ, FOLD, MINI SUN Series

RJ11 port(E)

PHLIZON: PL, FD, PRO Series

RJ11 port(E)

SPIDER FARMER: G, SE, SF Series

RJ11 port(E)

SUNRAISE: Bar Series

RJ11 port(E)

VIPARSPECTRA: KS5000(2023), XS2000(2023), PRO Series(2023)

RJ11 port(E)

VIVOSUN: Aerolight Series

RJ45 port(F)

VIVOSUN: VS(Except VS1000E), VSF, VSFD, VSFL Series, VSX3200

RJ11 port(E)

VOLT: VL Series

RJ11 port(E)

List of Compatible Inline Fans by Brand

Brand: Models	Port on GrowHub E42/E42A/E42A+
AC Infinity: Cloudline A, B, S, T Series with Type-C connector	Type C Ports(A/B)
AC Infinity: Cloudline Series with Molex connector	Type C Ports(A/B) with Fan adaptor
VIVOSUN: AeroZesh Series	Type C Ports(A/B)
VIVOSUN: Other Inline Fans with AUX Connector	Type C Ports(A/B) with Fan adaptor

Brand: Models

Port on GrowHub E42/E42A/E42A+

AC Infinity: Cloudline A, B, S, T Series with Type-C connector

Type C Ports(A/B)

AC Infinity: Cloudline Series with Molex connector

Type C Ports(A/B) with Fan adaptor

VIVOSUN: AeroZesh Series

Type C Ports(A/B)

VIVOSUN: Other Inline Fans with AUX Connector

Type C Ports(A/B) with Fan adaptor

Attention! Some light models may only support a limited number of daisy-chained lights and have a limited dimming range so these lights may not function as you expect. We recommend contacting your light’s manufacturer for more information.

VIVOSUN will continuously update our products to ensure lights and fans are compatible with the VIVOSUN SGS.

All BRANDS listed above are registered trademarks of their respective companies. VIVOSUN does not claim any affiliation with these brands.

Operation

For maximum convenience, we recommend connecting your GrowHub Controller E42A+ to the Vivosun App. This lets you monitor and control your grow environment from anywhere using your smartphone—whether you’re relaxing at home or traveling abroad. The app also unlocks additional features and functions to enhance your growing experience.

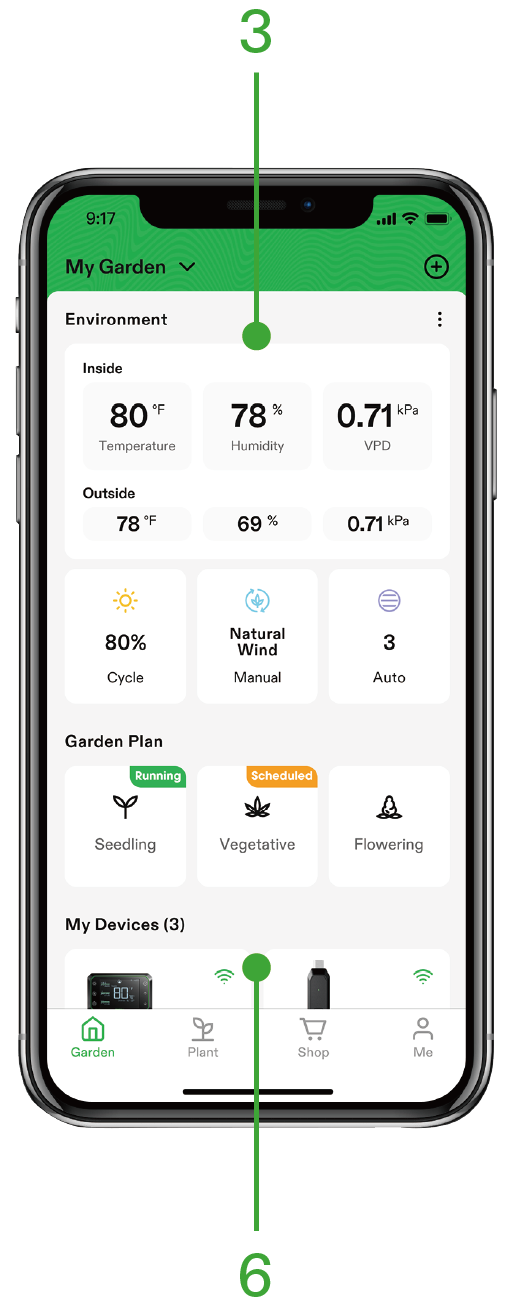

CONNECTING TO THE VIVOSUN APP

1. Download the Vivosun App

Search ''VIVOSUN'' in the Apple App Store or in the Google Play Store to download the Vivosun app.

2. Add your GrowHub Controller E42A+

Tap '' + '' or c5778afd2d7234838ac8746c16ebcea2 to add your GrowHub Controller E42A+. When connecting to the Vivosun app, 91eefc5001f39a10f61a056a560a7184 will flash on the screen.

Note: Make sure you have a 2.4 GHz Wi-Fi connection, and that Bluetooth is enabled on your phone.

LOCAL OPERATION

Button	Short Press	Long Press
	Go to the Dashboard
	1. Enter the Control page on the Dashboard 2. Cycle between different devices on the Control page 3. Cycle between different tabs on the Settings page	Enter the Settings page
	1.Return to the Dashboard when in the Control/Settings page 2.Discard current settings and return to the previous page
	Power Adapter, AeroWave Clip-on Fan, and AeroZesh Inline Fan
	Increase the current setting value	1.Toggle °F/°C on the Dashboard 2.Continuously increase value when configuring parameters
	Decrease the current setting value	Continuously decrease value when configuring parameters

Button

Short Press

Long Press

613f2e5b5251a3c04571a933a2d5e193

Go to the Dashboard

60ff080719153b446aa585df54477094

1. Enter the Control page on the Dashboard 2. Cycle between different devices on the Control page 3. Cycle between different tabs on the Settings page

Enter the Settings page

d23b10a4146ef5e62b048c0729077125

1.Return to the Dashboard when in the Control/Settings page 2.Discard current settings and return to the previous page

379bb86427094bddaa6aac1b1fc17af7

Power Adapter, AeroWave Clip-on Fan, and AeroZesh Inline Fan

17dc40cde0e134d520b7e14437fbc55d

Increase the current setting value

1.Toggle °F/°C on the Dashboard

2.Continuously increase value when configuring parameters

a041600315da568aade59517e9898927

Decrease the current setting value

Continuously decrease value when configuring parameters

FIRST-TIME SETUP

First, connect the GrowHub Controller E42A+ to a powered Vivosun device such as AeroLight, AeroZesh duct fan, AeroWave clip-on fan, or a power adapter to turn on the Controller. The GrowHub Controller E42A+ draws power directly from these devices.

Next, set the system time by using the 17dc40cde0e134d520b7e14437fbc55d and a041600315da568aade59517e9898927 buttons and pressing 379bb86427094bddaa6aac1b1fc17af7 to confirm. The system time will automatically sync with your local time once connected to Wi-Fi.

After setting the time, select the device type (Power Adapter, AeroWave Clip-on Fan, AeroWave Gen2 Clip-on Fan, or AeroZesh Inline Fan) for each port you’ve connected. You must configure all ports after the initial setup.

Port settings can later be adjusted under Settings > Port.

Note: All ports assigned the same device type will operate under the same logic. For example, if Ports A, B, and C are set as AeroWave clip-on fans, they will all follow the circulation fan logic.

GROWHUB INTERFACE

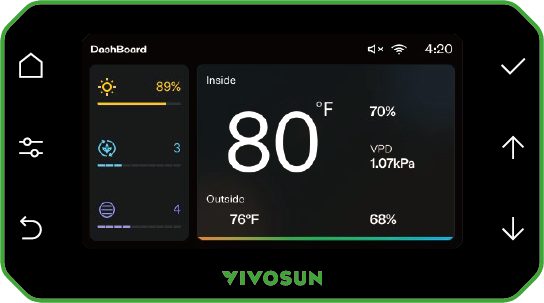

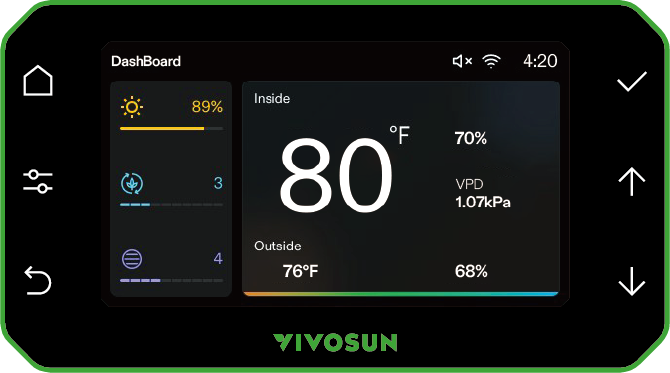

Dashboard:

Press 613f2e5b5251a3c04571a933a2d5e193 to access the Dashboard. Here, you can view the status of your devices and monitor all environmental parameters.

System settings: time, Wi-Fi, key tone
Current operating status of connected devices
Inside temperature, humidity and VPD
Outside temperature and humidity
Alerts for high/low temperature, humidity, VPD.

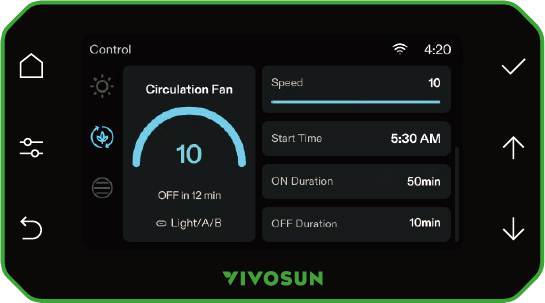

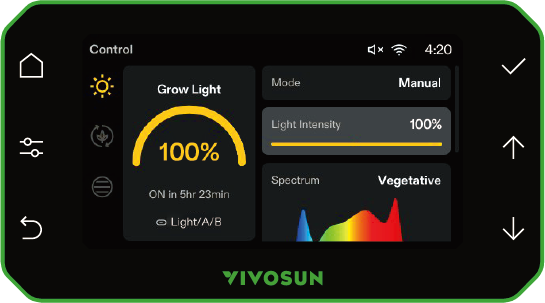

Control:

On the Dashboard , press 60ff080719153b446aa585df54477094 to enter the Control page to set up a grow light, circulation fan or duct fan. You can press on the Control page to switch to the device you need. Press ↑ ↓ and 379bb86427094bddaa6aac1b1fc17af7 to set and confirm.

Grow Light:

Current operating status of the grow light
Mode selection: Manual or Cycle
Light intensity setting: 0–100%
Spectrum selection: Seedling, Vegetative, Flowering
Start time, ON duration, OFF duration, Sunrise/Sunset (Cycle mode only)

Circulation Fan:

Current operating status of the circulation fan
Mode selection: Manual or Cycle
Speed setting: OFF–10
Natural Wind setting: ON / OFF
Start time, ON duration, OFF duration (Cycle mode only)

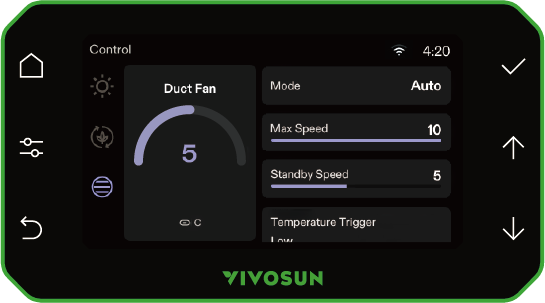

Duct Fan:

Current operating status of the duct fan
Mode selection: Manual, Cycle or Auto
Speed setting (OFF–10) in Manual and Cycle modes
Start time, ON duration, and OFF duration (Cycle mode only)
Max speed (1–10), standby speed (OFF–Max Speed, cannot exceed Max Speed), temperature trigger (High ≥ Low), humidity trigger (High ≥ Low), and VPD trigger (High ≥ Low) in Auto mode.

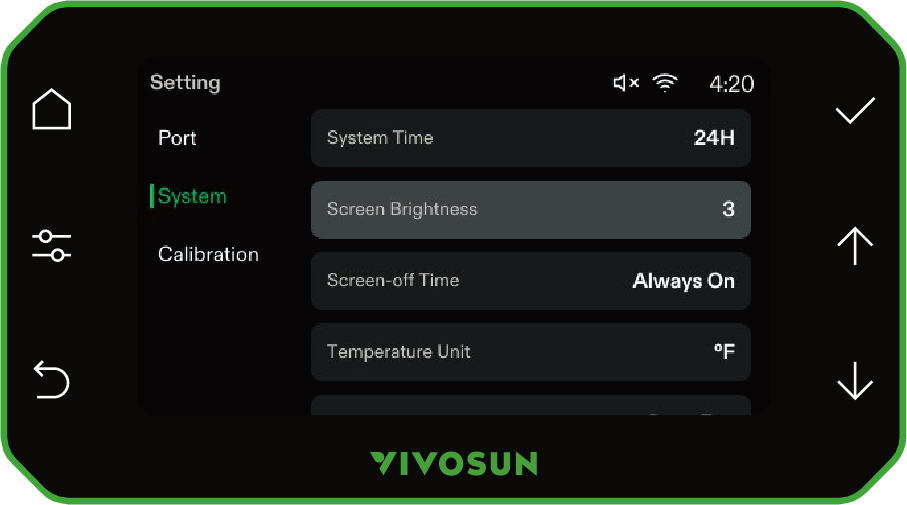

Settings

On the Dashboard/Control page, long press 60ff080719153b446aa585df54477094 to enter the Settings page to set up Ports, System or Calibration. You can press on the Settings page to cycle through different tabs. Press ↑ ↓ and 379bb86427094bddaa6aac1b1fc17af7 to set and confirm.

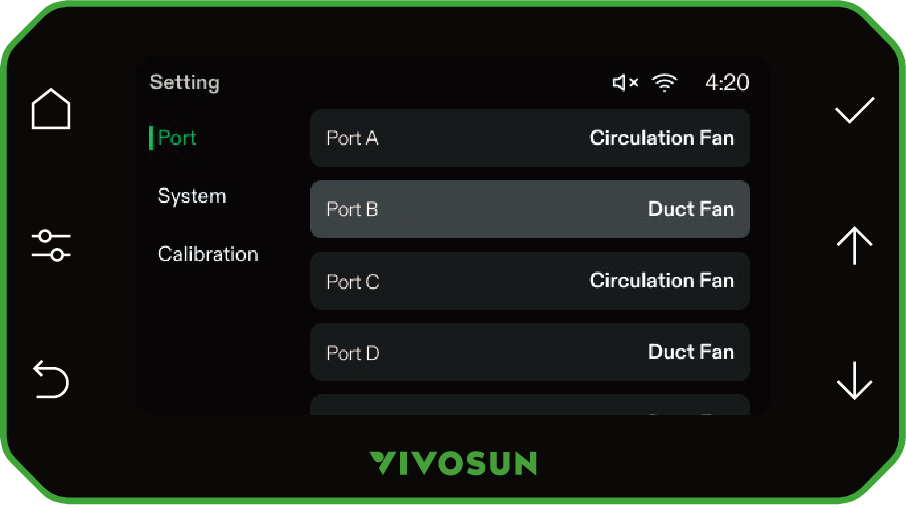

Port

Assign device types to Ports A–E

System

System Time
Time Format: 12H / 24H
Temperature Unit: °F / °C
Key Tone: ON / OFF
Screen Brightness: 5–100%
Screen-Off Time: 30 sec / 1 min / 3 min / 5 min / Always On
Language: English / Deutsch)
Reset Device

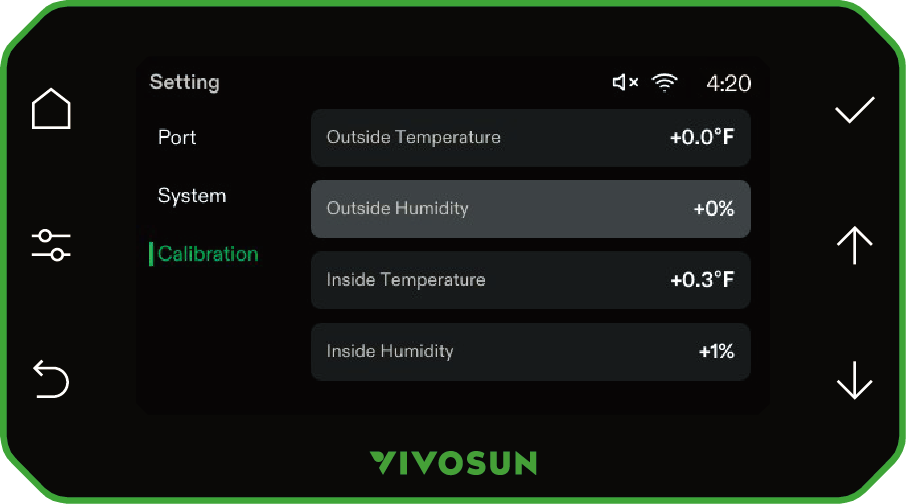

Calibration

Inside Temperature
Inside Humidity
Outside Temperature
Outside Humidity

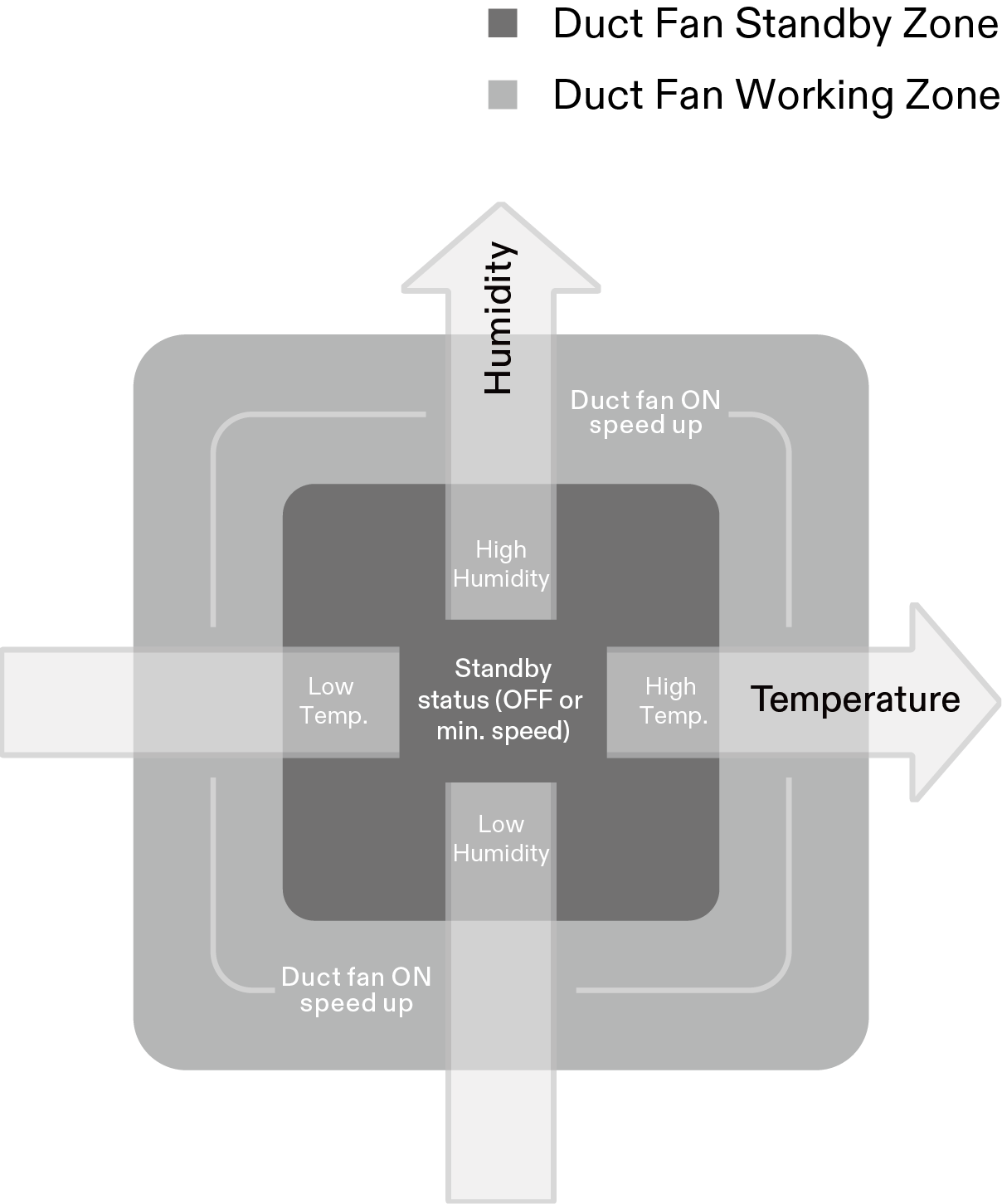

AUTO MODE

Settings for the thresholds between the duct fan’s standby and active zones can be adjusted using the GrowHub Controller or the Vivosun App. In the Vivosun App, you can also set the duct fan’s behavior during standby mode, choosing either to keep it OFF or run it at a minimum speed. When temperature or humidity reaches a specified threshold, the duct fan will turn ON or increase its speed.

The further the environment deviates from the threshold, the higher the fan speed will become.

The inside temperature or humidity reading will flash if the values rise above or drop below the set levels.

The alarm icon 78c27eb9bd80f124bb9622e2aee35766 will flash if the inside temperature or humidity exceeds the set range or if the duct fan remains in working mode for more than 1 hour.

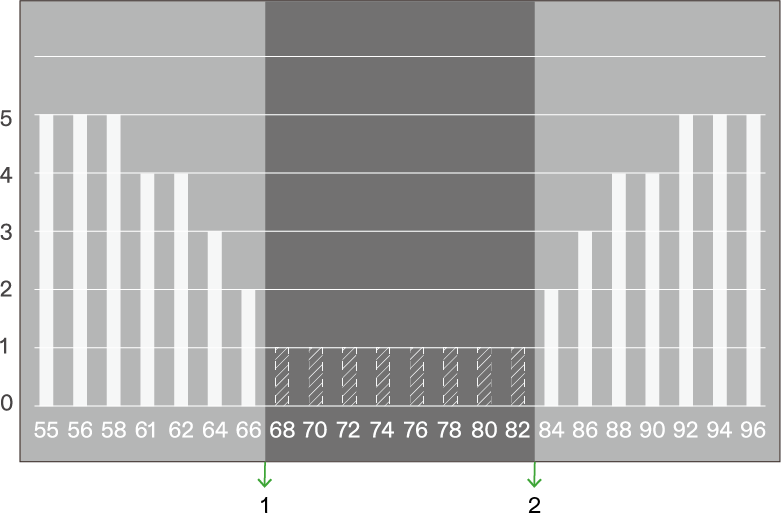

AUTO MODE —TEMPERATURE EXAMPLE

26bc3d369ecbac201fa528302b1cedad Standby status (OFF or min. speed)

142ee02379856aa71dc43b54ae7c97ce Duct fan ON / speed up

*The horizontal axis represents Temperature (°F)

① Low Temp.Trigger

② High Temp.Trigger

The example above shows the duct fan operating in Auto Mode (Max Speed = 5, Standby Speed = 1) in response to changes in inside temperature. When the temperature reaches a set threshold, the duct fan will turn on or increase its speed. The further the temperature exceeds the threshold, the higher the fan speed will become.

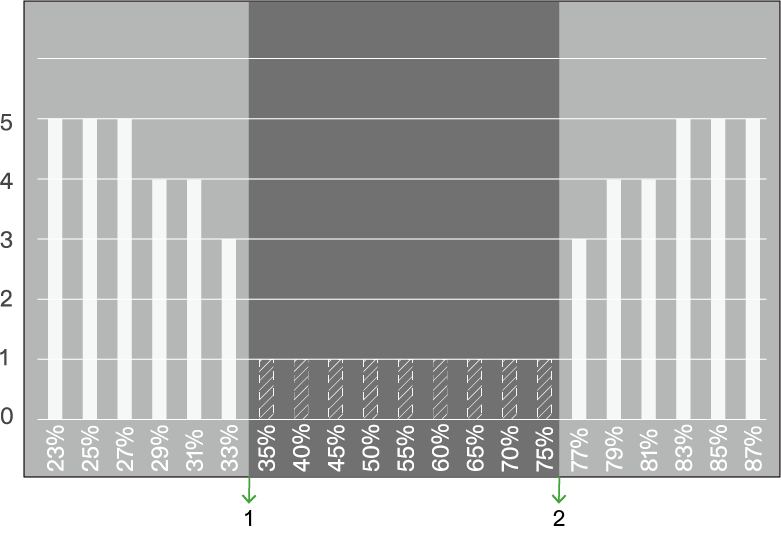

AUTO MODE—HUMIDITY EXAMPLE

26bc3d369ecbac201fa528302b1cedad Standby status (OFF or min. speed)

142ee02379856aa71dc43b54ae7c97ce Duct fan ON / speed up

*The horizontal axis represents Humidity (RH)

① Low RH Trigger

② High RH Trigger

The example above shows the duct fan operating in Auto Mode (Max Speed = 5, Standby Speed = 1) in response to changes in inside humidity. When the humidity reaches a set threshold, the duct fan will turn on or increase its speed. The further the humidity exceeds the threshold, the higher the fan speed will become.

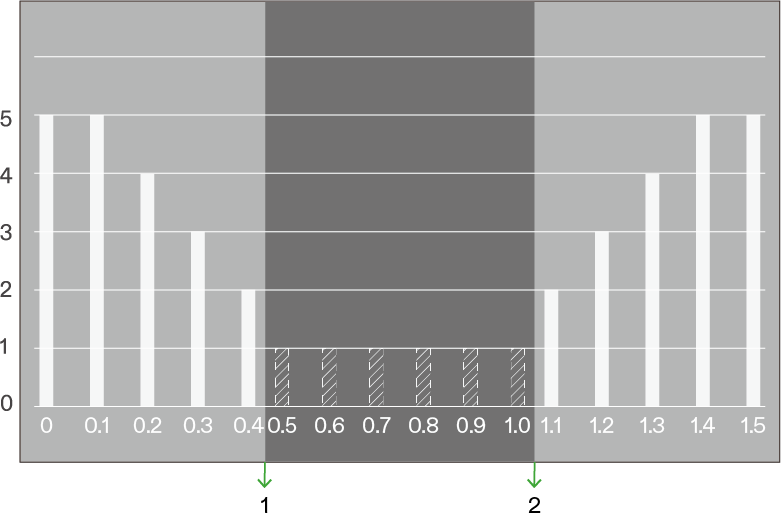

AUTO MODE—VPD EXAMPLE

26bc3d369ecbac201fa528302b1cedad Standby status (OFF or min. speed)

142ee02379856aa71dc43b54ae7c97ce Duct fan ON / speed up

*The horizontal axis represents VPD (kPa)

① Low VPD Trigger

② High VPD Trigger

The example above shows the duct fan operating in Auto Mode (High VPD = 1.0, Low VPD =0.5, Max Speed = 5, Standby Speed = 1) in response to changes in inside temperature. When the temperature reaches a set threshold, the duct fan will turn on or increase its speed. The further the temperature exceeds the threshold, the higher the fan speed will become.

Note: For precise VPD control, use HVAC devices (AeroLush Air Conditioner, AeroStream Humidifier, AeroDrain Dehumidifier, AeroFlux Heater) together with the system. The duct fan alone can only help regulate VPD by exchanging air between the grow tent and the external environment to adjust temperature and humidity.

ADVANCED AUTO MODE

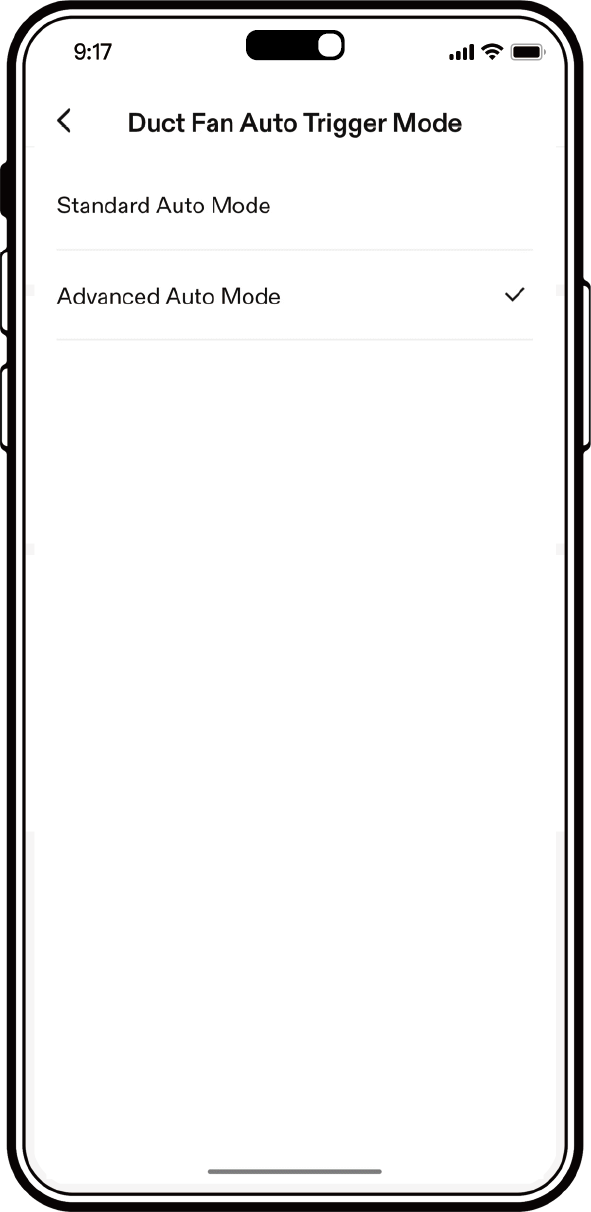

Use the Vivosun app to switch the duct fan to Advanced Auto Mode, where the system also considers the temperature and humidity outside your grow space when controlling the fan. In this mode, you can set minimum and maximum temperature and humidity thresholds. If the outside conditions are worse than inside, the duct fan will not increase speed—even if the internal temperature or humidity exceeds your set range. The alarm icon will flash to notify you that the external environment is unsuitable.

To enable Advanced Auto Mode, go to the Vivosun app: Settings > Additional Settings > Duct Fan Auto Trigger Mode.

FAQs

Q: Can I use the GrowHub controller without connecting to Wi-Fi or the Vivosun app?

A : Yes, you can use your GrowHub controller offline or without the Vivosun app to control basic functions for LED lights, circulation fans, and duct fans. However, after connecting your GrowHub to Wi-Fi, you can use the Vivosun app to monitor your grow environment remotely in real-time and access additional features such as grow plans, historical data, and more.

Q: How is the controller powered?

A : The Vivosun GrowHub Controller is powered through the control cable (RJ45 or Type-C) connected to an AeroLight, AeroZesh, or AeroWave E6. No additional power cable is required. However, when connected to a VS series light like LumaLight, LumaRay, or other compatible lights, a power adapter is necessary to power the GrowHub Controller.

Q: Why can’t my VS1000 light be controlled by the GrowHub after connecting?

A : Please ensure your VS1000 or other VS series lights are connected to the RJ11 port on the Converter (Type C to RJ11 & RJ45) using a standard RJ11 cable, and set the dimming knob on your VS light to “EXT.” If you daisy-chain multiple VS lights, all must have their dimming knobs set to “EXT.”

Q: What kind of Wi-Fi router do I need? Is the Vivosun GrowHub compatible with 5 GHz Wi-Fi networks?

A : The Vivosun GrowHub connects only to 2.4 GHz Wi-Fi networks. Most routers broadcast both 2.4GHz and 5 GHz networks—often with similar names differentiated by “2.4 GHz” or “5 GHz.” Please select the 2.4 GHz network when pairing your GrowHub.

Q: My GrowHub Controller won’t connect to Wi-Fi during pairing. What should I do?

A : First, ensure your Wi-Fi network is 2.4 GHz, as the Vivosun GrowHub connects only to 2.4 GHz networks. Next, verify that the Wi-Fi password is entered correctly. If you still cannot complete the pairing process, please contact our support team via email and provide the login email you use for the Vivosun app so we can offer a tailored solution.

Q: What happens if my GrowHub Controller is offline?

A : If your GrowHub Controller is offline (no Wi-Fi or internet access), it will continue operating using the last programmed settings or Grow Recipe. You can control the GrowHub directly on the device, but live data and remote control via the Vivosun app will be unavailable. The GrowHub will automatically reconnect once Wi-Fi is restored.

Q: What happens if there’s a power outage? Do I need to reconfigure the controller?

A : If your GrowHub Controller was connected to Wi-Fi and the Vivosun app before the power outage, it will automatically reconnect to your Wi-Fi and continue executing your settings as if power had never been lost. If your GrowHub was not connected to Wi-Fi and the Vivosun app before the outage, you will need to calibrate the time on the controller first. The controller will then resume running the previous settings automatically.

Q: Can I reconfigure the Wi-Fi connection of the controller?

A : Yes. First, reset the GrowHub Controller E42A+ in System Settings. Then reconfigure the Wi-Fi connection using the Vivosun app.

Q: Why is the data shown on my app dashboard different from the data shown onthe GrowHub screen?

A : The live data updates every minute. You can also swipe down on the page to refresh the data manually.

Q: Can I temporarily override the settings while a recipe is running?

A : Yes. You can temporarily override a recipe by switching to Manual mode on either the Vivosun app or the GrowHub controller. To override in the app, stop the current recipe (Plan mode) before switching to Manual mode. On the GrowHub controller, you’ll need to unlock Recipe mode first before overriding.

Q: Does the Vivosun app work with iPhone and Android devices? What about tablets?

A : The Vivosun app is compatible with both iPhone and Android devices, including tablets. You can download the app from the Apple App Store for iOS devices (iPhone or iPad) or from Google Play for Android devices.

Q: Will the app notify me if there is an issue?

A : Yes. The Vivosun app will send notifications to your phone if devices encounter issues or if environmental conditions fall outside the set ranges.

Q: Can I use the App if I am outside of the United States?

A : Yes. The Vivosun app connects to your GrowHub controller via the cloud, allowing you to monitor and control your devices from anywhere in the world with an internet connection.

Q: How old is the data I can access in the Vivosun app?

A : The Vivosun app will display historical data up to one year old.

Q: Are you planning to add new features? If so, will I be able to benefit from them?

A : To ensure our customers love what they grow, our team constantly improves the product based on customer feedback (please check our community forum). All customers benefit from these improvements through free app updates or OTA (Over-The-Air) firmware updates.

When we release new features, we communicate them to our entire community—so don’t worry, you won’t miss out.

Q: How can I get technical assistance?

A : If you have any issues or questions, please contact us:

Website: https://vivosun.com/help/contact-us

Email: official@vivosun.com

Phone: +1-888-505-8486 (Monday to Friday, 7 AM–6 PM PST)

Address: Vivosun Inc.

1320 S Baker Ave Suite B, Ontario, CA 91761, USA

Warranty

VIVOSUN offers a 2-year limited warranty on this product purchased directly from us or our authorized dealers, beginning on the original date of purchase.

This warranty is provided in addition to, and does not affect, your statutory rights under applicable consumer protection laws in the country where the product was purchased.

For the full Warranty Policy, please visit: https://www.vivosun.com/help/warranty-policy

Alternatively, you may contact customer service at support@vivosun.com / +1 888-505-8486.

FCC ID Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

IC Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

The distance between the user and device should be no less than 20 cm.
